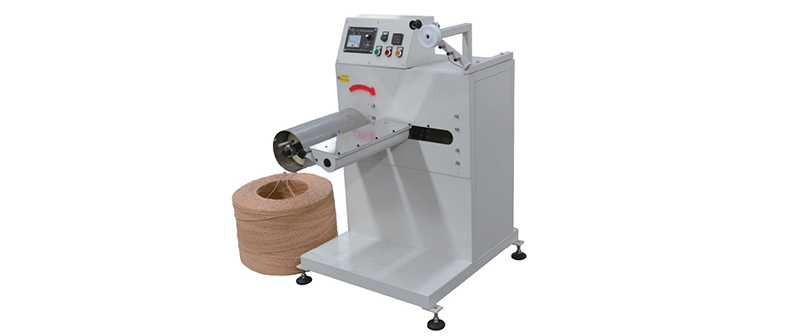

Paper Rope Rewinder

The paper rope rewinder is generally paired with a rope making machine. The paper rope roll produced from the rope making machine will be used as the raw material. After rewinding, the diameter of the paper rope roll will be enlarged, and the rope knots in the raw paper roll can be eliminated, greatly enhancing the production efficiency in the further processes.

Request a Quote

Parameters

Power supply	AC380V, 50HZ
Motor power	1.5kw
Motor speed	1400 RPM
Cable	4X1.5mm R.S.J.MP
Core Diameter of rope roll	180mm
Swing stroke	400mm
Max. Finished rope roll diameter	600mm
Overall dimensions	1000X1000X1360mm
