Upright Flat Handles Block Bottom Paper Bag Making Machine

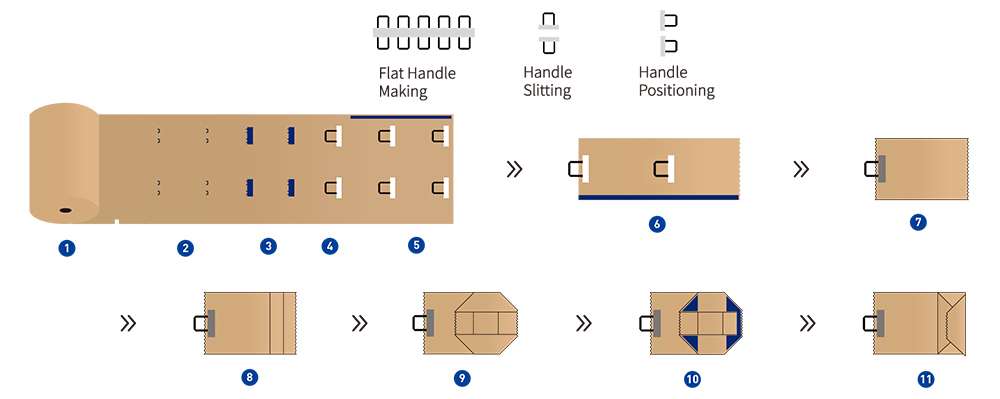

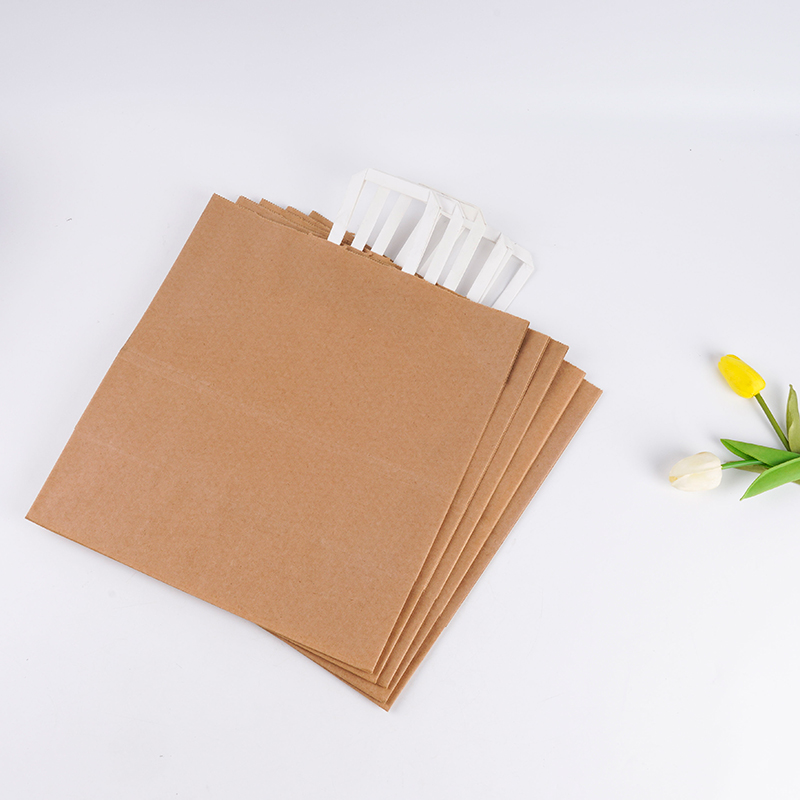

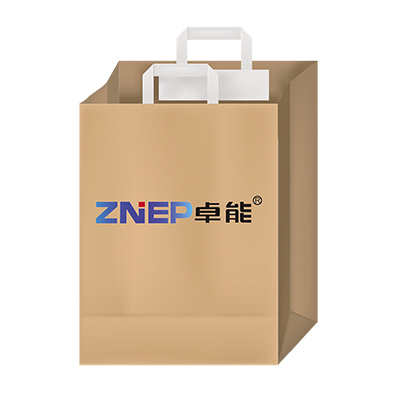

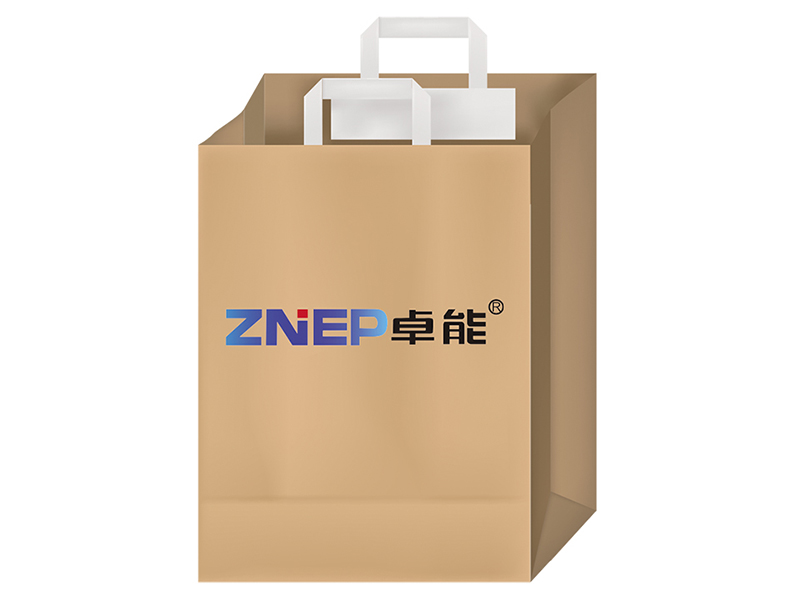

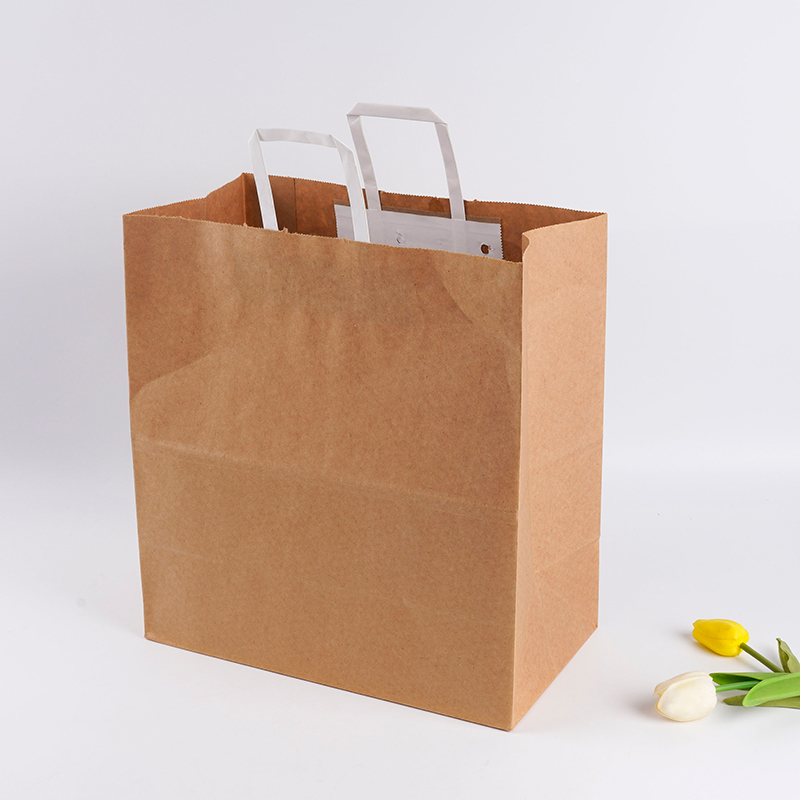

This paper bag machine is specifically designed for producing paper shopping bags with flat handles that are visible on the outside of the bags. It automates the process by creating handles from flat ropes and paper patches, which are then precisely cut, pasted, and attached to the bags.

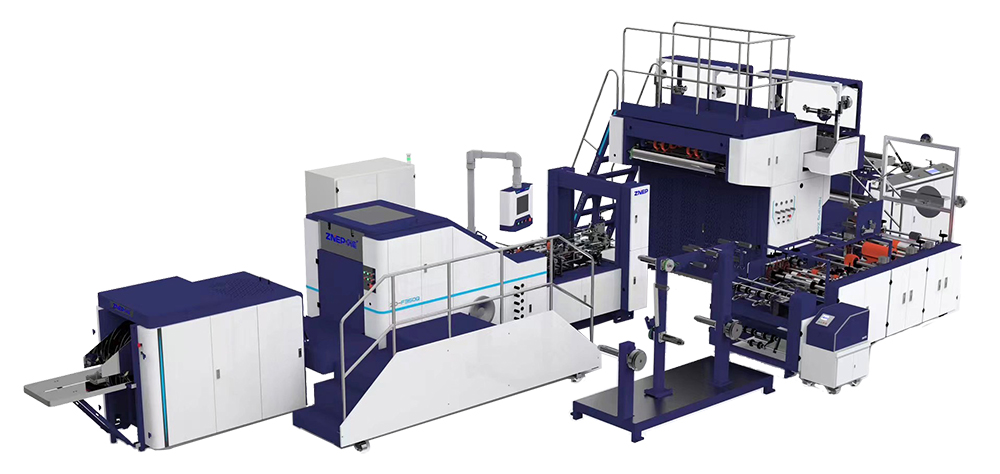

From start to finish, the paper bag making machine transforms plain or pre-printed paper rolls into complete bags in one continuous operation. This includes attaching handles, gluing the sides, forming tubes, cutting, creasing bottoms, and gluing, leading up to the final bag formation. The machine is equipped with Japanese servo motors, ensuring rapid and stable performance while reducing adjustment times. The bags produced are of high precision and stability, and the machine itself is easy to maintain and efficient in production, making it a suitable choice for printing factories and paper bag manufacturers.
| Model | ZD-F350B |
ZD-F450B |
ZD-F550B |

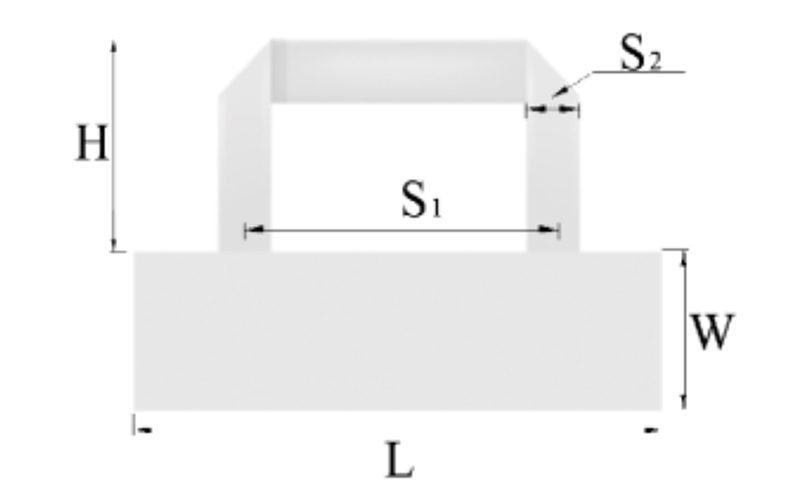

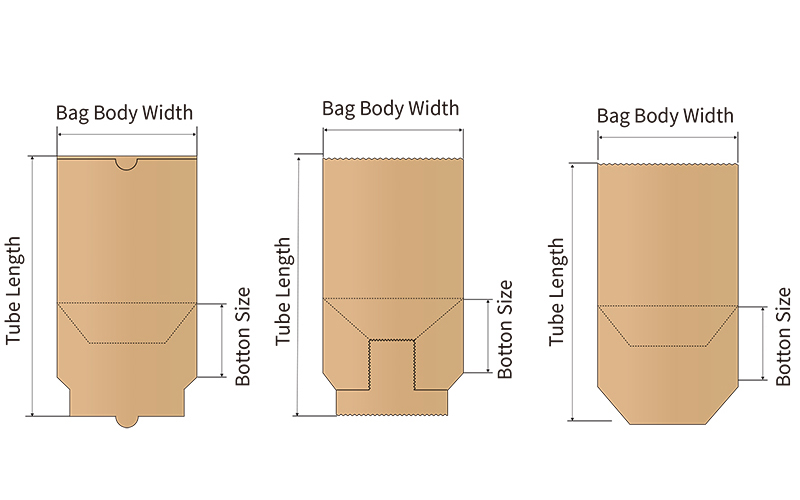

| Flat handle height | 100mm | 100mm | 100mm |
| Flat rope distance | 76mm | 95mm | 95mm |
| Paper gram for handle | 100-130g/m2 | 100-130g/m2 | 100-130g/m2 |
| Flat rope width | φ12mm | φ15mm | φ15mm |
| Handle patch length | 152mm | 190mm | 190mm |
| Handle patch width | 42.5-50mm | 42.5-50mm | 42.5-50mm |
| Paper patch roll dia. | φ1200mm | φ1200mm | φ1200mm |
| Paper patch gram | 100-150g/m2 | 100-150g/m2 | 100-150g/m2 |
| Roll paper width | 420-1050mm | 650-1370mm | 670-1670mm |
| Max. dia. of roll paper | φ1500mm | φ1500mm | φ1500mm |
| Inside diameter of paper | 76mm | 76mm | 76mm |
| Paper gram | 60/80-150g/m2 | 70/80-150g/m2 | 80/90-150g/m2 |
| Finished bag width | 130/180-350mm | 230-450mm | 240-540mm |
| Paper tube length | 260- (530 mm with handle height) | 260- (630 mm with handle height) | 380- (770 mm with handle height) |
| Gusset width | 65-180mm | 80-220mm | 80-280mm |
| Max production speed | 150PC/min | 140PC/min | 80-130PC/min |
| Total power | 33KW | 33KW | 33KW |
| Weight | 18500KG | 19500KG | 21500KG |
| Overall dimension ( L*W*H ) | 13500 * 5700 * 2500mm | 14500 * 5800* 2500mm | 15500 * 6200 * 2500mm |
-
-

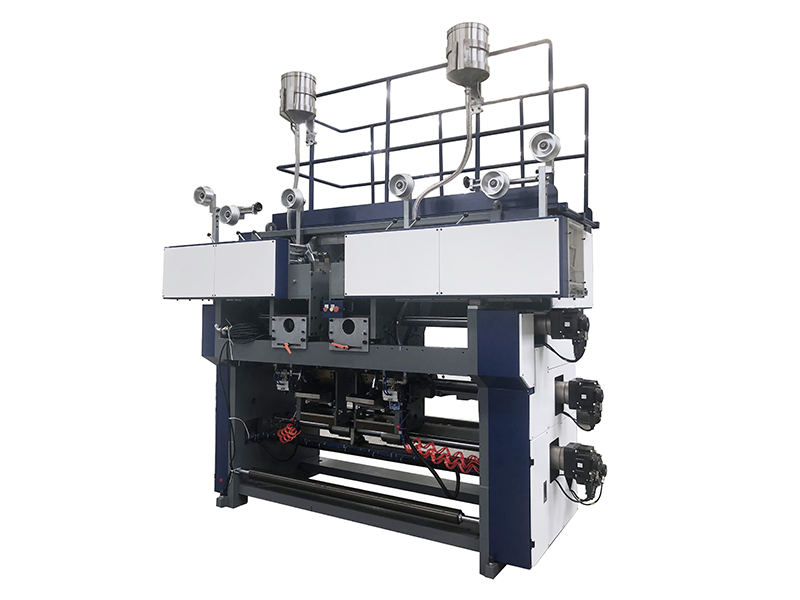

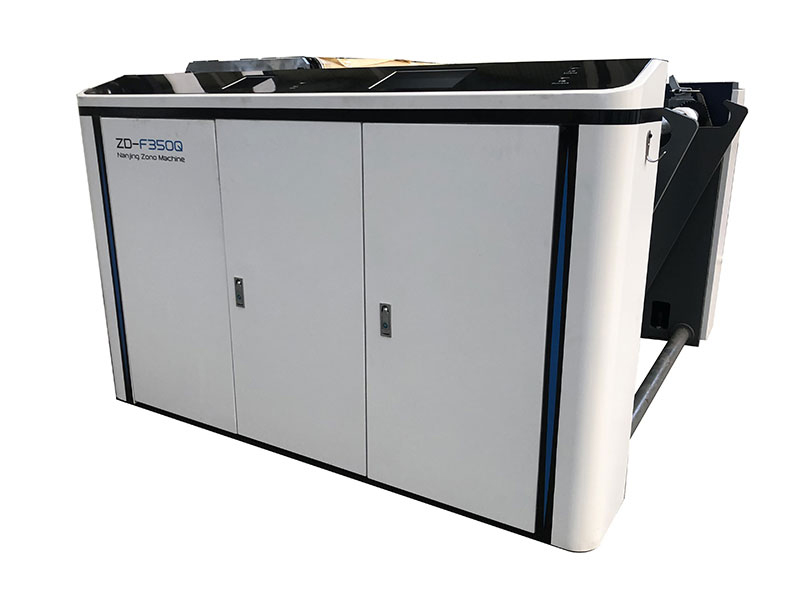

FEEDING UNIT
The roll paper fixed on the air expanding mandrel can be fed by swing arm which is equipped with lifting hydraulic system. With an alarm function, the feeding unit will sound alarm when there is no paper feeding. Improved surface smoothness of the paper during the feeding is achieved due to the web guide and uniform tension control. Paper rolls can be easily changed by pressing a button.
-
-

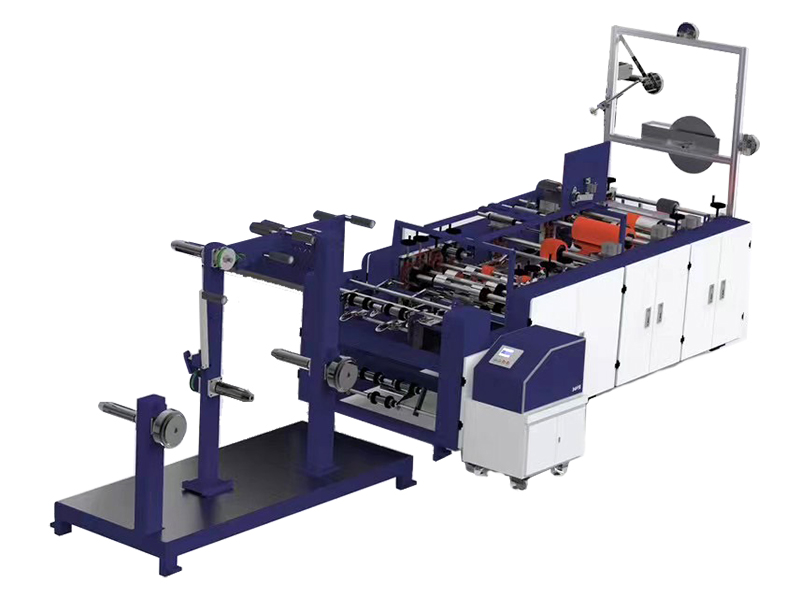

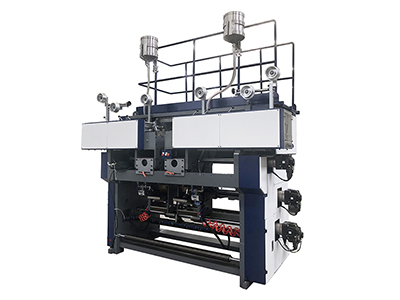

HANDLE MAKING UNIT
Roll paper can be pasted together to create a flat handle.
-
-
HANDLE PASTING UNIT

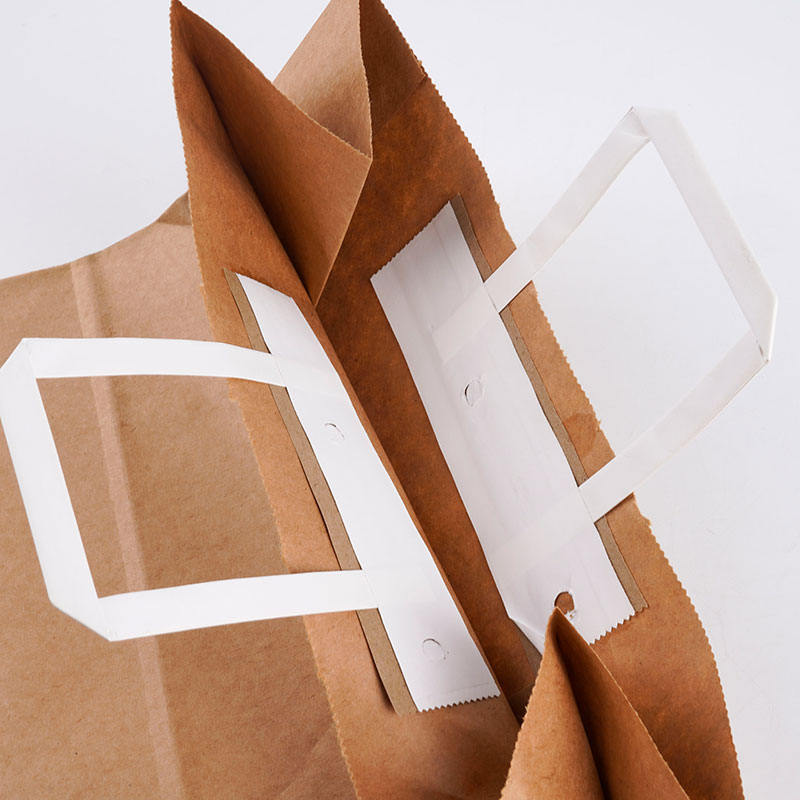

The handle pasting machine can automatically paste the flat handle into the required position of bag body with the use of glue and then presses it firmly on the bag body before pre-creasing.
-
-

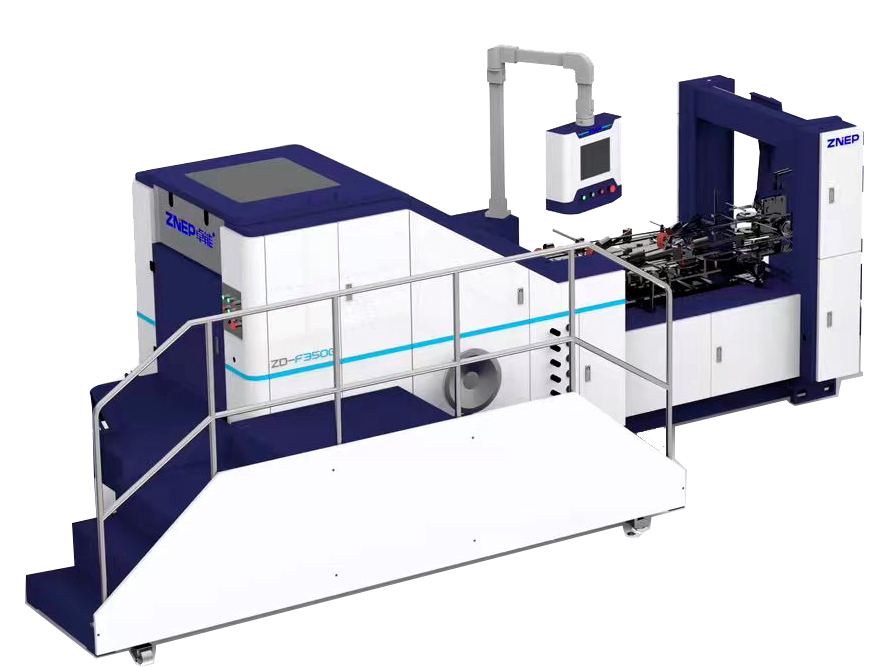

BAG FORMING UNIT

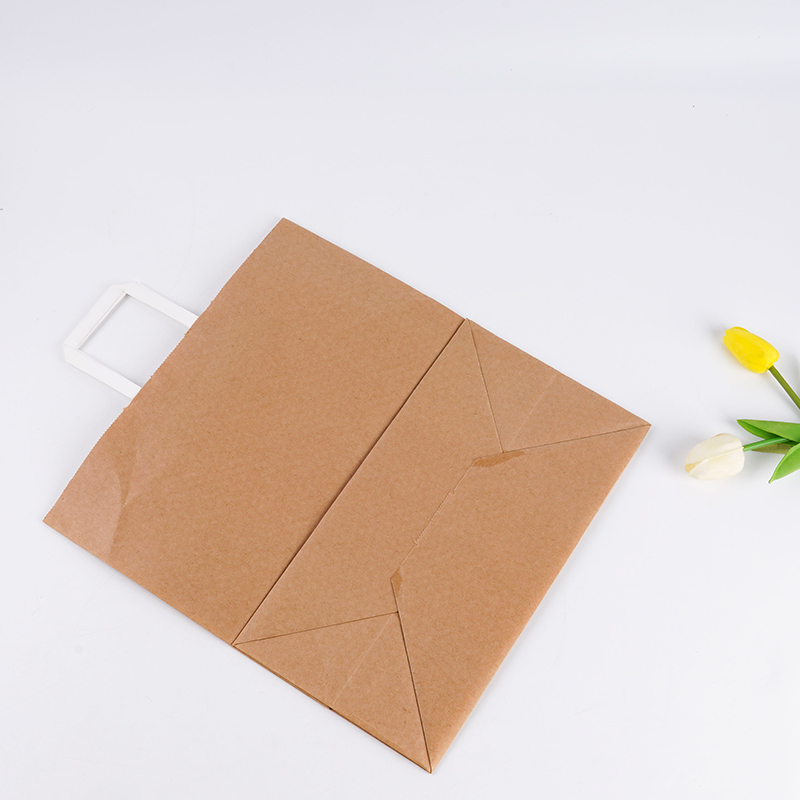

Form the paper with patches and side glue into the tube; and cut into separate pieces based on the settings. Afterwards, these separate tubes will be sent to the drum to open the four corners, then bottom glue, seal and form the square shape consequently.
-
-

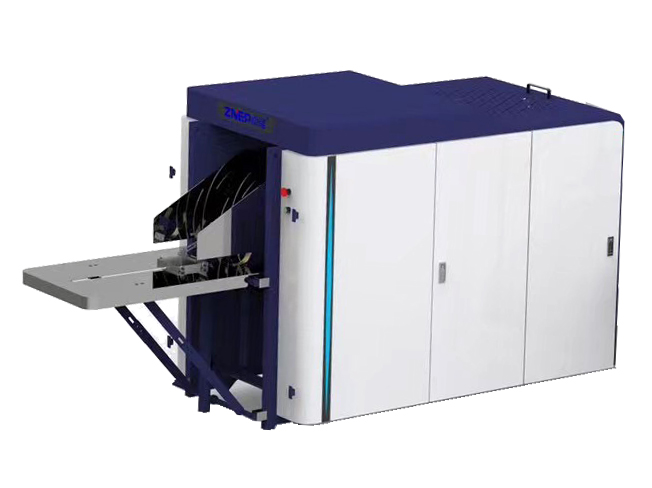

BAG COLLECTING UNIT
Compress the bags and output the bags. The number of paper bags processed can be displayed by the automatic collection and counting system.
