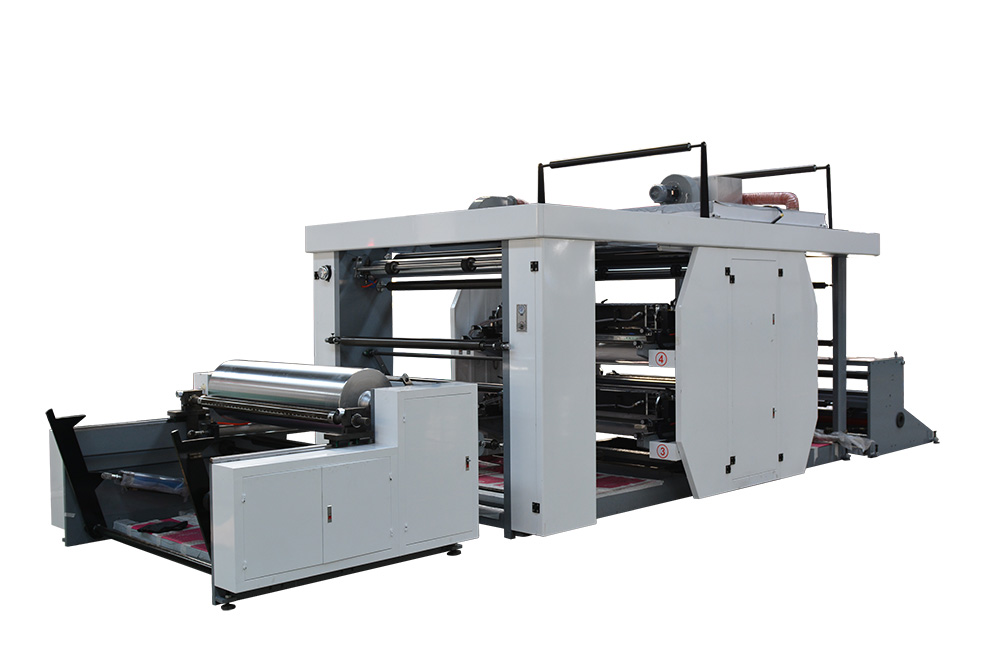

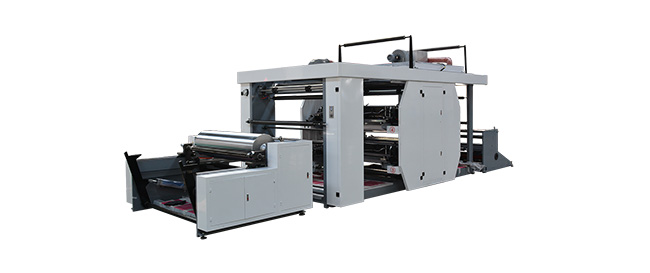

Flexo Printing Machine
- Adopting hydraulic shaftless reel stand makes material loading easy and safe.
- Main motor with synchronous belt drive matched with a precision planetary gearhead, ensuring precise tension, motion control and synchronization across the entire machine. The gear driven impression roller realizes reverse printing.
- The high-quality prints can be greatly ensured due to long distance conveying after printing.
- The printing plate roller adopts helical gear transmission to improve the registration accuracy of printing color.
- The prints are rewound in a smooth and compacted manner. Hydraulic control makes material discharge easy and safe.
Parameters
| Model | ZNY2/4-1000 |
ZNY2/4-1200 |
ZNY2/4-1400 |
ZNY2/4-1700 |
| Max. printing material width | 1000 mm | 1200 mm | 1400 mm | 1700 mm |
| Max. printing width | 960 mm | 1160 mm | 1360 mm | 1660 mm |
| Printing length range | 230-1000 mm | 230-1000 mm | 280-1000 mm | 280-1000 mm |
| Paper thickness/weight | 30-150 g/m²(0.05-0.2mm) | 30-150 g/m²(0.05-0.2mm) | 30-150 g/m²(0.05-0.2mm) | 30-150 g/m²(0.05-0.2mm) |
| Max. unwinding/rewinding diameter | 1300 mm | 1300 mm | 1300 mm | 1300 mm |
| Scrapper size (Width * Thickness) | 40mm*0.152mm | 40mm*0.152mm | 40mm*0.152mm | 40mm*0.152mm |
| Ink cavity pressure | ≤ 6 kg | ≤ 6 kg | ≤ 6 kg | ≤ 6 kg |
| Printing speed | 10-100 m/min | 10-100 m/min | 10-100 m/min | 10-100 m/min |
| Register precision | < 0.2 mm | < 0.2 mm | < 0.2 mm | < 0.2 mm |
| Thickness of plate (including the thickness of double sides glue) | Plate thickness: 1.7/2.28mm Glue thickness: 0.38mm | Plate thickness: 1.7/2.28mm Glue thickness: 0.38mm | Plate thickness: 1.7/2.28mm Glue thickness: 0.38mm | Plate thickness: 1.7/2.28mm Glue thickness: 0.38mm |
| Power consumption | Operating power 6kW+drying power 6kW Operating power 9kW+ drying power 6kW | Operating power 9kW+drying power 6kW Operating power 12kW+drying power 6kW | Operating power 9kW+drying power 6kW Operating power 12kW+drying power 6kW | Operating power 12kW+drying power 6kW Operating power 15kW+drying power 6kW |
| Voltage | 380v/50Hz | 380v/50Hz | 380v/50Hz | 380v/50Hz |
| Compressed air | 5-10m³/h | 5-10m³/h | 5-10m³/h | 5-10m³/h |
| Air pressure | 6kg | 6kg | 6kg | 6kg |
