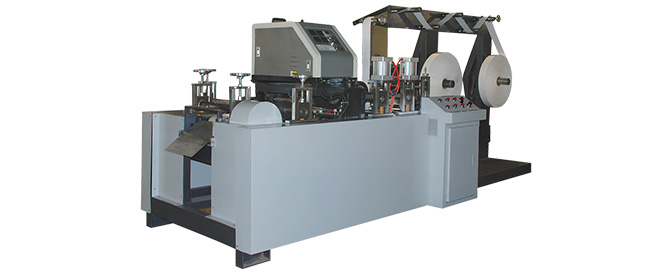

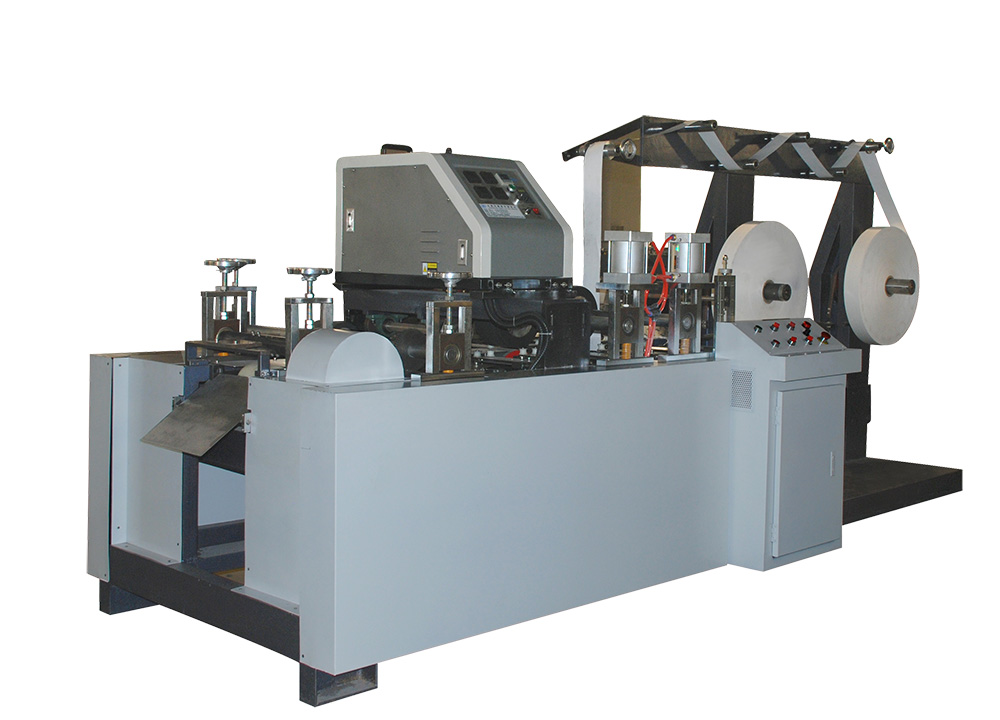

This bag handle making machine is specially designed to produce paper handle with twisted rope at high speed. The twisted paper rope handle can be then attached to the bag body either manually or by the machine. Two narrow web paper rolls and one paper rope roll are used as the raw material to feed into the machine. The paper and paper rope are attached together to form a paper rope handle. In addition, this bag handle making machine features automatic counting and gluing, greatly improving the efficiency of subsequent processes of users.
Model | ZN-S100Y |
Handle spacing | 108 mm |
Paper handle width | 12 mm |
Paper handle height | 100 mm |
Paper patch width | 40 mm |
Paper patch length | 190-170-152 mm |
Paper handle length | 352 mm |
Paper bag thickness | 90-130 gsm |
Paper bag width | 200-450 mm |
Paper bag height | 200-450 mm |
Production speed | 33-40 pcs/min |
Total power | 12.2kW, 50HZ |
Servo motor power | 750W * 2 sets |
Overall dimensions (L*W*H) | 7000*2450*1700 mm |
