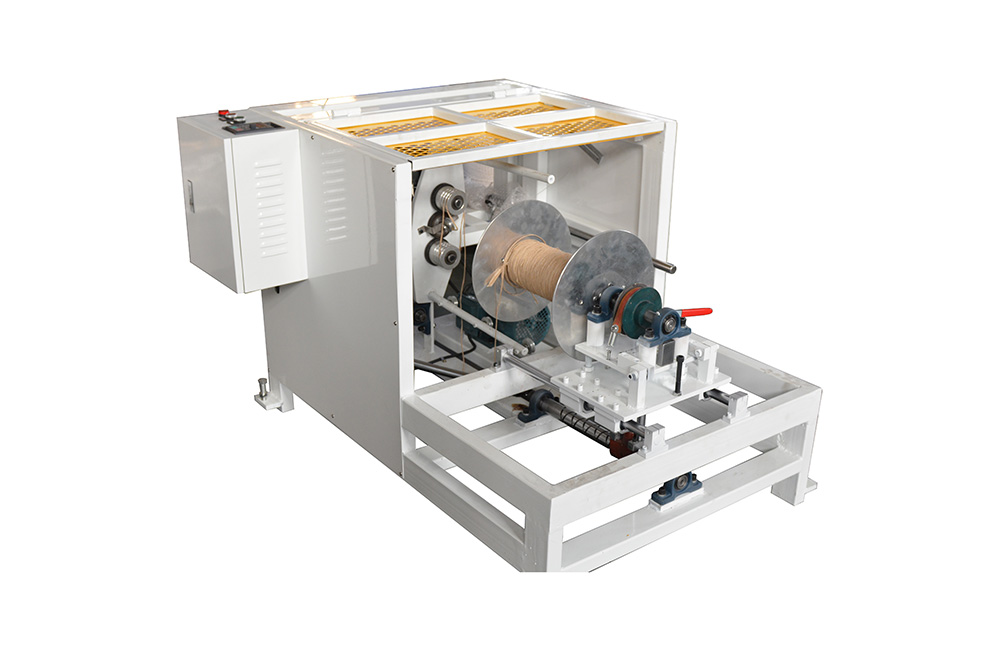

Rope Making Machine

This rope making machine is designed to make twisted paper rope at high speed, which is auxiliary equipment for paper shopping bag machines with handles. The slit paper is twisted into paper rope with desired diameter, and the twisted paper rope is then rewound to be a paper rope roll for further processing.

Request a Quote

Parameters

Model	ZN-10K	ZN-20K
Paper roll core diameter	76 mm	76 mm
Max. diameter of roll paper	500 mm	450 mm
Paper roll width	20-100 mm	20-100 mm
Paper gram	15-60 g/m2	15-60 g/m2
Paper rope diameter	2.5-6 mm	2.5-6 mm
Production speed	16-20 m/min	30-50 m/min
Power requirements	220 V	220 V
Total power	1.5 kW	2.2 kW
Machine weight	250 kg	700 kg
Overall dimensions (LWH)	15001300100 mm	15801750930 mm
